Unique Nanobubble Characteristics

Nanobubbles have unique physical and chemical properties and are superior to other aeration methods. Therefore nanobubble technology is used in a variety of applications, including water treatment, agriculture, aquaculture, food processing, and other industrial areas.

Brownian Motion

Nanobubbles stay in the water for a long time. This unique feature enables nanobubbles to provide a homogenous distribution of oxygen throughout an entire body of water. And Dissolved oxygen level is maintained for very long time.

Find Out More

High Oxygen Transfer Efficiency

Ultrafine bubbles, Nanobubbles, dissolved Oxygen, micro bubbles, milli bubbles, the world of bubbles can be confusing at times. Bubbles are gas-filled cavities in water, they remain suspended in water, dissolved oxygen are unbound oxygen molecules in water. Unbound oxygen behaves differently, and it's important to understand the difference between a dissolved gas and a gas cavity.

Find Out More

Nanobubble has a strong surface charge. This negative charge improves separation efficiency in floating process. This feature float more suspended matter than through conventional methods in the wastewater, oil and gas operators.

Find Out More

Surfacecharge

Why are nanobubbles negatively charged?

Nanobubbles are generally negatively charged because of the adsorption of ions from the surrounding liquid onto their surface. This charge helps stabilise the bubbles by preventing them from coalescing or merging with other bubbles, allowing them to stay in suspension for longer periods. The negative charge also contributes to their unique interactions with contaminants in water, making them effective in water purification processes.

Find Out More

Microbubble Surface tension and gas pressure

The gas pressure inside a small bubble is higher than in a large bubble, therefore the surface tension of a small bubble is higher as well. For this reason, the gas of a small bubble dissolves quicker than that of a large bubble. A small bubble rises slower than large bubbles to the top of the water surface, because of this extra time the gas transport from bubble to liquid is more efficient. Small bubble coalescence less (stick less together) than large bubbles, this is beneficial because when bubbles get bigger, they raise quicker to the surface giving them less time for gas transport.

Find Out More

In laboratory circumstances there is the possibilities that bubbles can be kept for 3 to 6 months, I real life applications it is much shorter. The likely reason for the long-lived presence of ultrafine bubble is that the ultrafine bubble gas / liquid interface is charged, introducing an opposing force to the surface tension, so slowing or preventing their dissipation. In an electrolyte solution the positive ions become concentrated around the gas nucleus due to its negatively charged surface and act as shells that prevent the gas from dispersing (the salting-out phenomenon). Due to this characteristic of ion behavior, ultrafine bubbles remain stable for more than 6 months in electrolyte solution.

Find Out More

Why do ultrafine bubbles live so long?

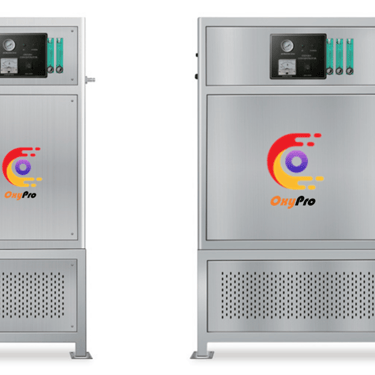

Innovative Nanobubble Generator

Enhancing quality of life through advanced nanobubble applications across various industries.

Pressurized dissolution

The principle of the ultrafine bubble generator is as follows: Via a venturi system the liquid and the gas are mixed together, in the next step in the mixing box the gas is melted into the water via pressurization. In the last step via a nozzle the water and gas is discharged. Due to drastic drop in pressure of the supersaturated liquid gas solution, the gas is expelled as fine bubbles and ultrafine bubbles in the liquid.

Find Out More

Rotational flow

Rotational flow is also often called Swirl Method or Spiral Flow. This fine bubble generator generates bubbles according to the Bernoulli's principle.The principle of the fine bubble generator is as follows: water is put into a cylindrical tank from the top-side and made to flow in a spiral downwards. From the center bottom of the cylinder, the gas is sucked in. The rotating water is sheared to the top of the cylinder, producing fine bubbles. However, it's generally acknowledged in the ultrafine bubble industry that the bubble concentration of the pressurized dissolution method is higher than the rotational flow.

Find Out More

This technology is based on the principle of creating a vortex and bringing into the vortex a gas very effectively. Due to the turbulent flow gas will break the vortex and the collisions between water and gas creates the nanobubbles.

The benefits of the static mixers are that they have a relative simple design, and they can treat large volumes of water at once with relative little energy compared to many of the other above nanobubble generators. Finally, they are not sensitive to clogging. The acniti Turbiti technology is a combination of the turbulent static mixer and the Ejector Nozzle.

Find Out More

Turbulent Static Mixer

Ejector Nozzle

In the ejector nozzle nanobubble generator type, liquid flow channels in the cylindrical generator are designed to shrink and stepwise enlarge. In this device, the water flow is highly turbulent, and the gas is reduced to nanobubbles by cavitation. Ejector nozzles are closely related to hydrodynamic cavitation generators, with this method cavitation is generated by the flow of liquid through a simple geometry under controlled conditions.

Find Out More

Hammermill Rotation

The hammermill rotation concept is a unique concept compared to all the other nanobubble generation techniques, as it does not use a pump to generate nanobubble. Instead, it uses a motor with hammers mounted on the shaft. The motor turns at a velocity of 3400 rotations per minute in a tube. The tube fills with water from the top, and the gas injection is also from the top. The hammers on the shaft dissolve the gas and crushes the gas into nanobubble at the bottom of the unit the nanobubbles come out. The hammer rotation concept is the most energy friendly way to generate nanobubbles as it is not moving large amounts of water and doesn’t need a high pressure but uses all its energy to crush the gas.

Yes, nanobubbles technology is evolving fast and more and more innovative method of generation is invented to suit for different applications..
